Verification of Tellegen's Theorem

Procedure:

Allow JavaScript alerts in your browser.

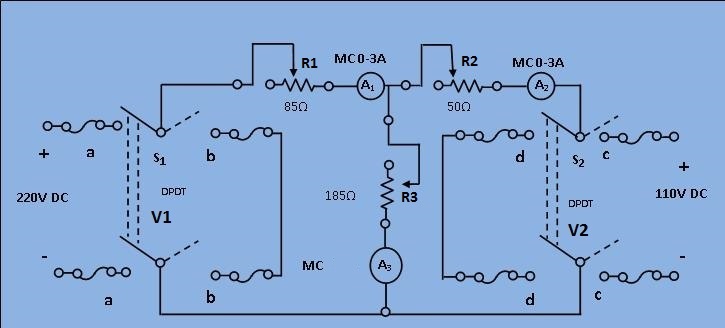

Set all the resistances R₁, R₂ and R₃ and choose any arbitrary values of V₁ and V₂.

Experiment Part Select:

Case 1: In presence of both the sources
Select switch of S₁ to Power and S₂ to Power and Simulate the program from case 1 tab. Observe the power supplied in +ve and power dissipated in -ve by the elements and voltage source from case 1 tab.

Case 2: In presence of V₁ only
Select switch of S₁ to Power and S₂ to short and Simulate the program from case 2 tab. Read the corresponding power values.

Case 3: In presence of V₂ only
Select switch of S₁ to Short and S₂ to Power and Simulate the program from case 3 tab. Read the corresponding power values.

MC-Moving Coil.
DPDT- Double pole Double throw.
N.B.:- All the resistances are in ohms.

Case 1
Determination of branch currents in presence of both the sources:
Select both the switches, S₁ and S₂ to power.
And then click on Simulate.
Case 2
Determination of branch currents in presence of V₁ source only:
Select the switch S₁ to power and S₂ to short.
And then click on Simulate.
Case 3
Determination of branch currents in presence of V₂ source only:
Select both the switch S₁ to short and S₂ to power.
And then click on Simulate.

Observation Table:

Sl no.	In presence of both V₁ and V₂ All values are in Watt					In presence of V₁ only All values are in Watt				In presence of V₂ only All values are in Watt
Sl no.	P₁(by R₁)	P₂(by R₂)	P₃(by R₃)	Pv₁(by V₁)	Pv₂(by V₂)	P₁(by R₁)	P₂(by R₂)	P₃(by R₃)	Pv₁(by V₁)	P₁(by R₁)	P₂(by R₂)	P₃(by R₃)	Pv₂(by V₂)
1
2
3
4
5
